Metro
Smart Built-in Package
Pickup available at 102 Jervois Street
Usually ready in 2-4 days
Package includes: Firebox, fascia, VZCC and ECO Built-In flue kit with Galvanised Liner.

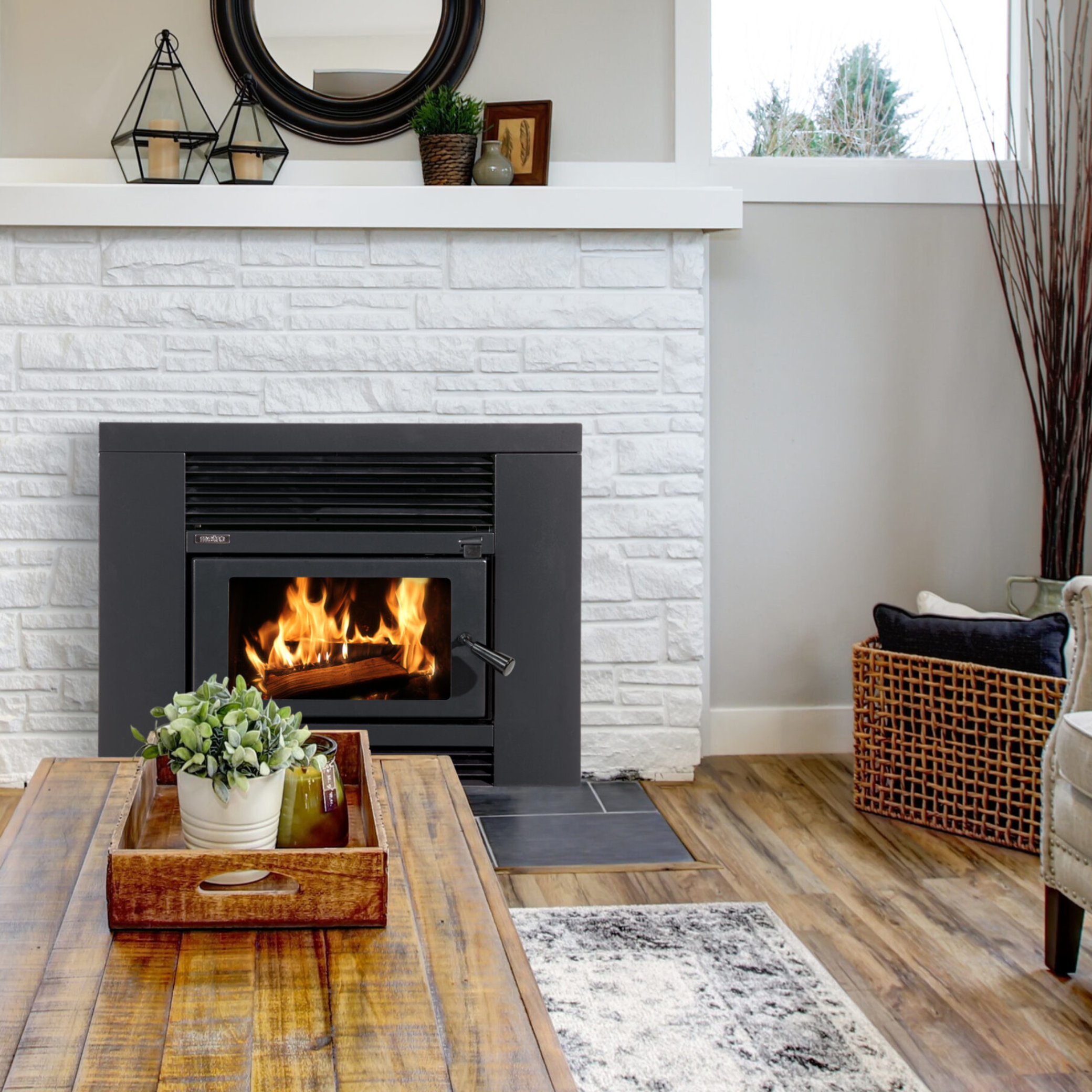

Minimal detailing and clean lines place the Smart well in any home. The Smart Built-In package is designed for new installations into a timber framed cavity (false chimney) by utilising the Smart Insert VZCC and ECO Built-in flue kit. Optional fascia base rail is also available. Fascia finished in metallic black high temperature paint.
Clean Air Model:
- Type: Clean air approved
- Peak Output: 15kW
- Heating Area: Up to 150m2 / 3 bedroom home
- Finish: Metallic black
- Wetback: Optional Smart wetback
- MfE #: 102411 (DRY) / 102426 (WET)
- Emissions: 0.49gms (DRY) / 0.82gms (WET)
- Efficiency: 68% (DRY) / 67% (WET)
- Baffle: Smart Front Baffle
- Baffle 2: Smart Rear Baffle
- Water heating: Smart Wetback
- Door glass: Wee Series/Smart Insert Door Glass
- Door retainer: Wee Series/Smart Insert Glass Retainer
- Fire bricks: Metro Firebrick (2)
Rural (LTD) Model:
The LTD Smart features modern styling with a flush front fascia and the unique firebox design delivers longer burn times. Suitable for lifestyle and rural properties with a land area of 2Ha or greater. The LTD Smart Built-In package is designed for new installations into a timber framed cavity (false chimney) by utilising the Smart Insert VZCC and ECO Built-in flue kit. Optional fascia base rail is also available. Fascia finished in metallic black high temperature paint.
- Type: LTD rural (2Ha+)
- Peak Output: 15kW
- Heating Area: Up to 150m2 / 3 bedroom home
- Finish: Metallic black
- Wetback: Optional Smart wetback
- Baffle: Smart Front Baffle
- Baffle 2: Smart Rear Baffle
- Water heating: Smart Wetback
- Door glass: Wee Series/Smart Insert Door Glass
- Door retainer: Wee Series/Smart Insert Glass Retainer
- Fire bricks: Metro Firebrick (2)
| A | B | C | D | E | F |
| 560 | 495 | 550 | 405 | 890 | 30 |
| G | H | I | J | K | L |
| 672 | 890 | 312 | 130 | 325 | 475 |
Please note: All measurements detailed above are in millimetres (mm). Insert model measurements exclude the 13mm insulating blanket. 1 The Smart Insert can be installed into a timber framed cavity (false chimney) with the addition of the Smart Insert Vented Zero Clearance Cabinet (VZCC) and ECO Built-In flue kit. Visit your Metro agency or metrofires.co.nz for full details.
