DAB

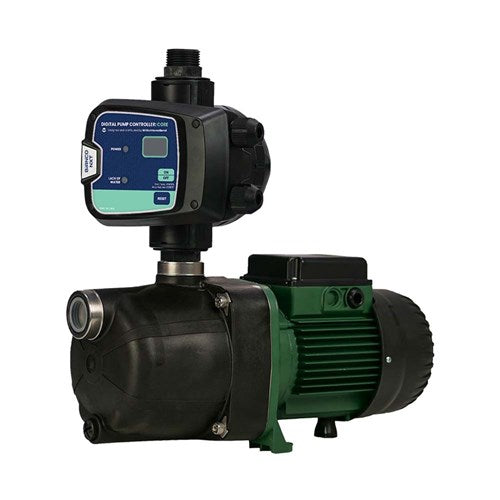

DAB Technopolymer Surface Mounted Pump with nXt Core Controller 0.75kW 53.8m Head
$1,279.00 NZD
/
Tax included.
Pickup available at 102 Jervois Street
Usually ready in 5+ days
DAB Technolpolymer Surface Mounted - Jet Pump with nXt Intelligent 1 mode controller
This pump includes the Bianco NXT Core digital pump controller.
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
0.75kW, 1.0hp, 240V, max hd 53m, max flow 60L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out
Code: 808410 (DAB-JETCOM102M 800426 Bare Pump)
Technical Specifications
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Bar | 5.3 |
| Suitable For | Clean Water |
| Approval | Drinking Water Approval |
| Amps | 5.1 |
| Flow Range Category | a. 0 - 99 L/min |
| Flow Rate (L/min) | 60 |
| Float | No |
| Hp | 1 |
| kPa | 527 |
| Kilo Watts | 0.75 |
| Max Flow (L/min) | 60 |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 53.8 |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPM outlet |
| Powered | Electric |
| Taps | 6 |
| Volts | 240 |
| Warranty (months) | 24 |
| Watts | 750 |
DAB-JETCOM102CORE
